Dynasty Hardware AUG-30-26D Grade 2 Commercial Duty Passage Lever, ADA

Dynasty Hardware Grade 2 Commercial Door Levers

Lever Design: Augusta

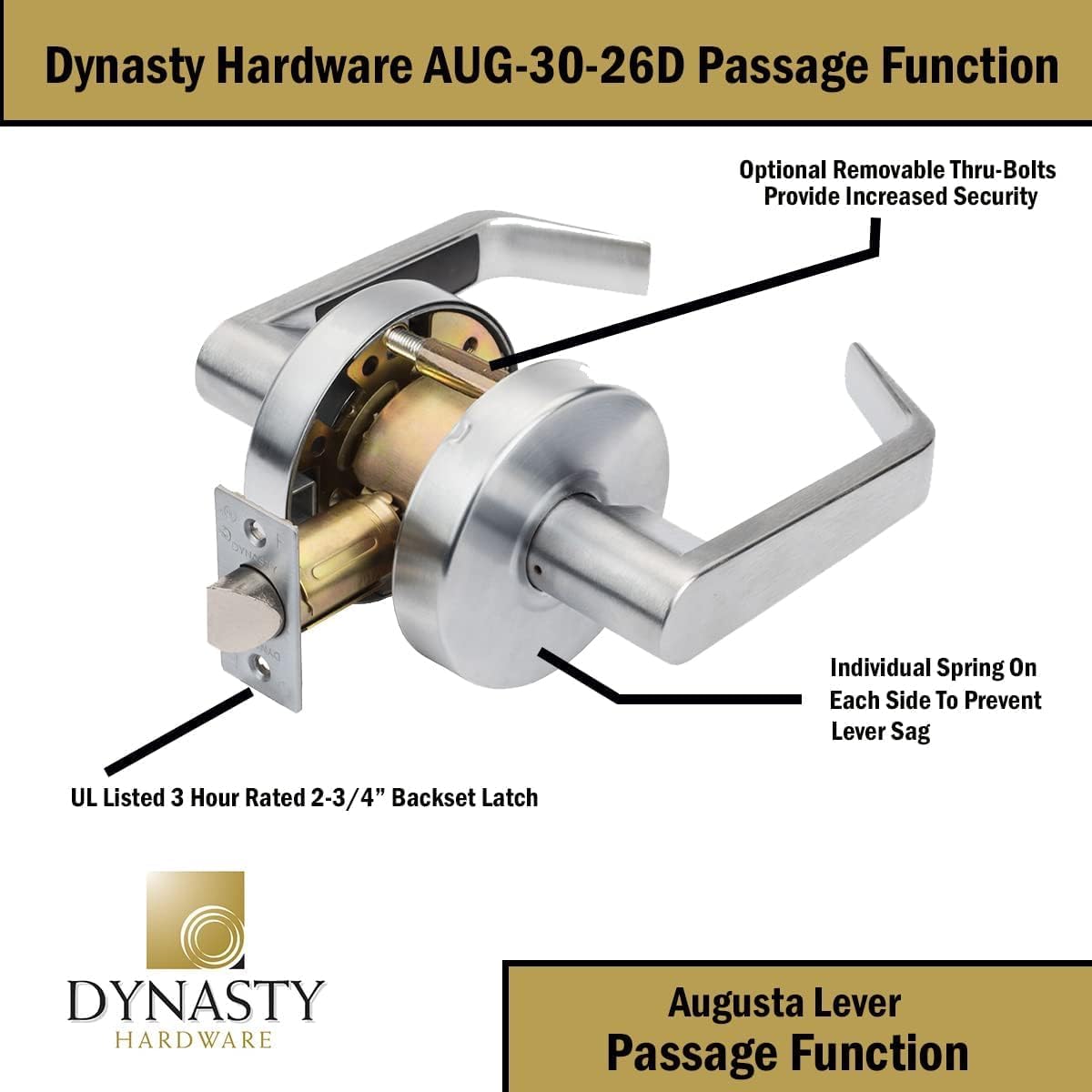

The Augusta grade 2 commercial door levers are perfectly suited for commercial buildings, hotels, restaurants, medical office buildings, and government buildings. Each lockset features strong individual compression springs and optional through-bolt installation that prevents lever sag. Heavy-duty construction makes this door lock perfect for commercial use. Easy to follow installation instructions.

Specifications:

Fits Doors 1-3/8” to 1-3/4” (35mm to 44mm) Door Thickness

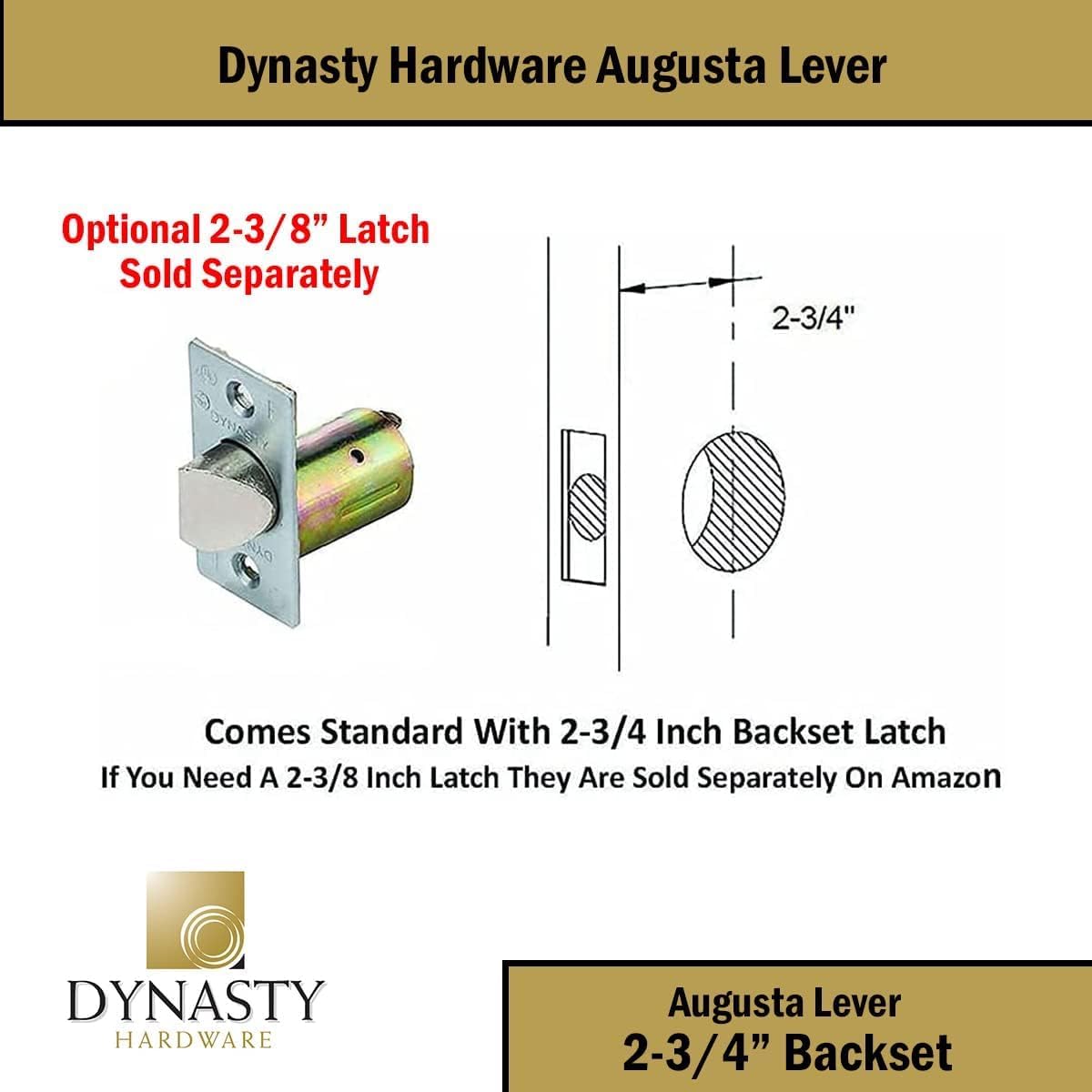

Backset 2-3/4” (70mm) --- 2-3/8" Backset Latches Sold Separately
Latch Front: 1-1/8" x 2-1/4" Square Corner
Strike ANSI (4-7/8” x 1-1/4”)
NON-HANDED (fits both Right Hand and Left Hand Doors)

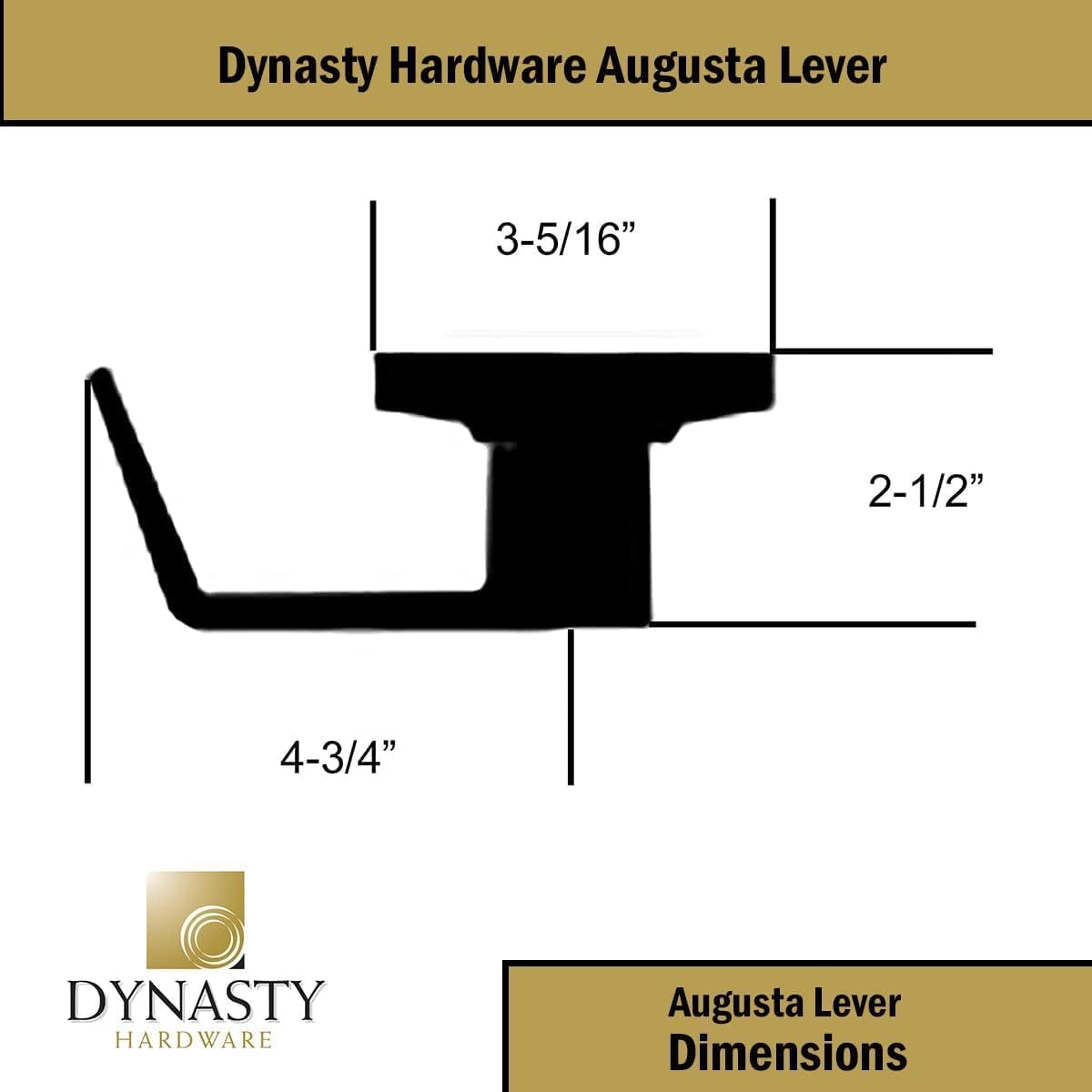

Rosette 3-5/16” (85mm) Diameter Steel
Fits 161 door prep - 2-1/8" diameter hole in face of door

The Augusta door levers are available in the following functions:

teast

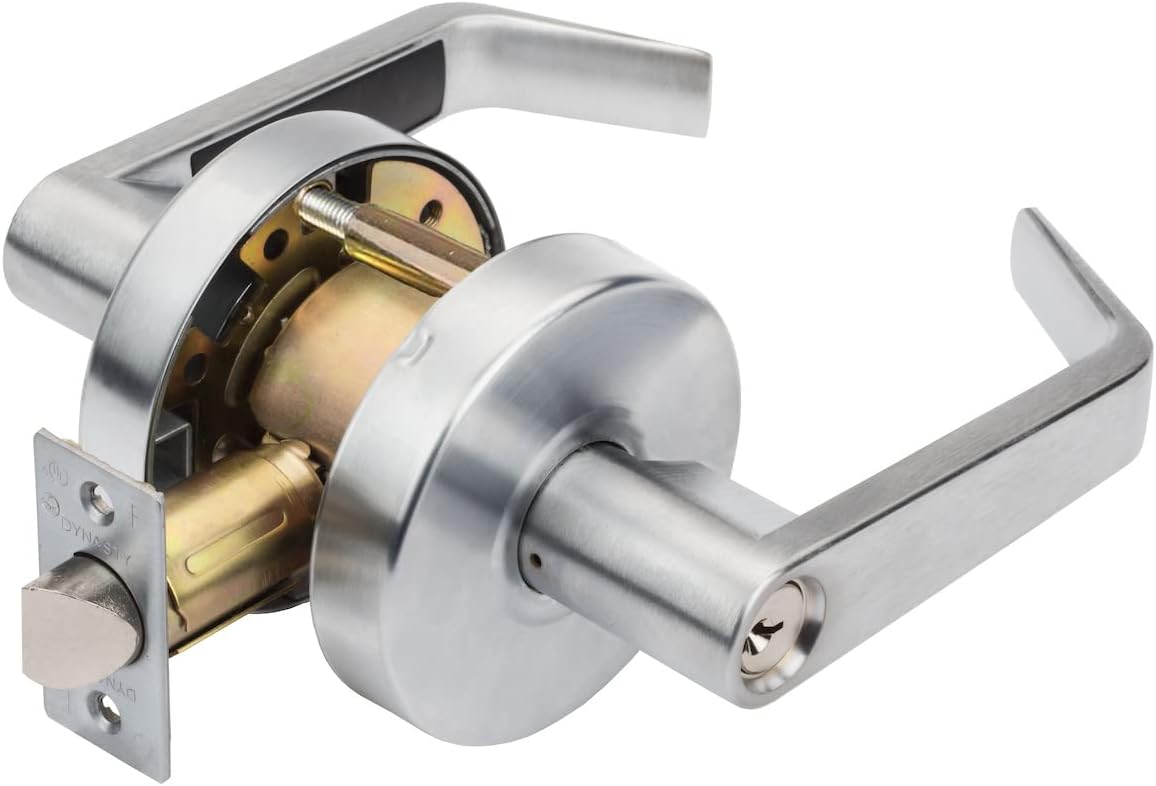

Keyed Entry Function (AUG-00-26D)

This Dynasty Hardware grade 2 keyed entry function commercial heavy duty door lever can be used in office buildings, restaurants, hotels

ANSI Grade 2 certified cylindrical Key-In function Lever handle
ADA approved for barrier free access on all commercial and residential exterior doors.
This keyed door lock can be used for either right or left handed applications.
The 4-3/4 Inch handles work independently of each other.
The 2-3/4-Inch backset latch meets the UL 3 Hour Fire Rating.
This lockset is made to fit doors between 1-3/8-Inch and 1-3/4-Inch.

Exterior keyed door lever satin chrome commercial office lock

Exterior Lever

Exterior lever can be locked or unlocked by using a key.

Uses SC1 keys
Each set is sold keyed different
Locks can be easily keyed alike if needed by any local lock shop.
The exterior handle is removable for ease of re-keying.
6 pin solid brass cylinder plug

keyed office lock dynasty hardware augusta

Interior Lever

Turn/push-button locking:

Pushing and turning the inside button locks the outside lever, requiring the use of a key until the button is manually unlocked.

Push-button locking:

Pushing the inside button locks the outside lever until it is unlocked by key or by turning the inside lever.

Inside Lever always free for immediate egress

privacy bathroom lock restroom door handle commercial ADA

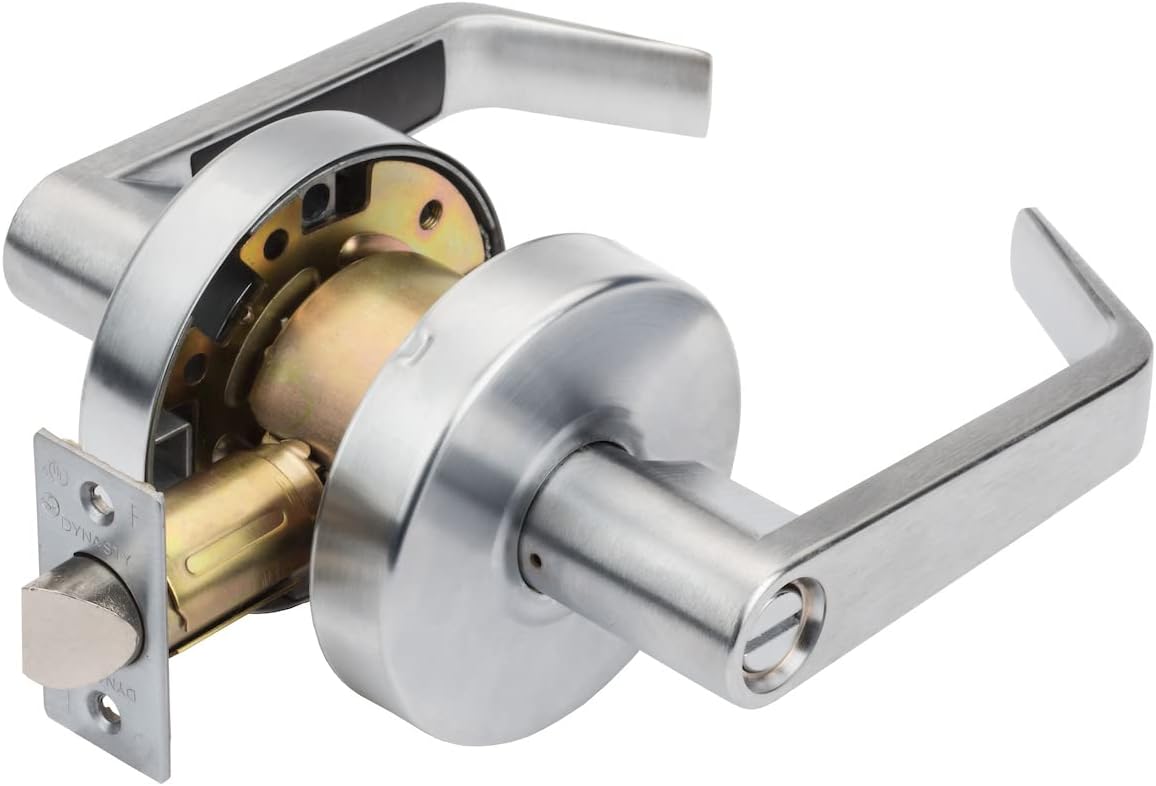

Privacy Function (AUG-20-26D)

This Dynasty Hardware grade 2 privacy function commercial heavy duty door lever can be used in office buildings, restaurants, hotels

ANSI Grade 2 certified cylindrical Privacy function lever handle.
ADA approved for barrier free access on all commercial and residential exterior doors.
This privacy lock can be used for either right or left handed applications.
The 4-3/4 Inch handles work independently of each other.
The 2-3/4-Inch backset latch meets the UL 3 Hour Fire Rating.
This lockset is made to fit doors between 1-3/8-Inch and 1-3/4-Inch.

bathroom lock commercial door lever dynasty hardware door handle restroom lock

Exterior Lever

Exterior lever can be unlocked from the outside by using a flat object to turn the button

Inside lever is always free for immediate egress.

bathroom lock dynasty hardware privacy satin chrome ADA

Interior Lever

Interior lever is locked by pushing a button on the inside . Turning inside lever or closing the door will release the inside button.

Inside lever is always free for immediate egress.

passage door lever commercial handle dynasty hardware augusta

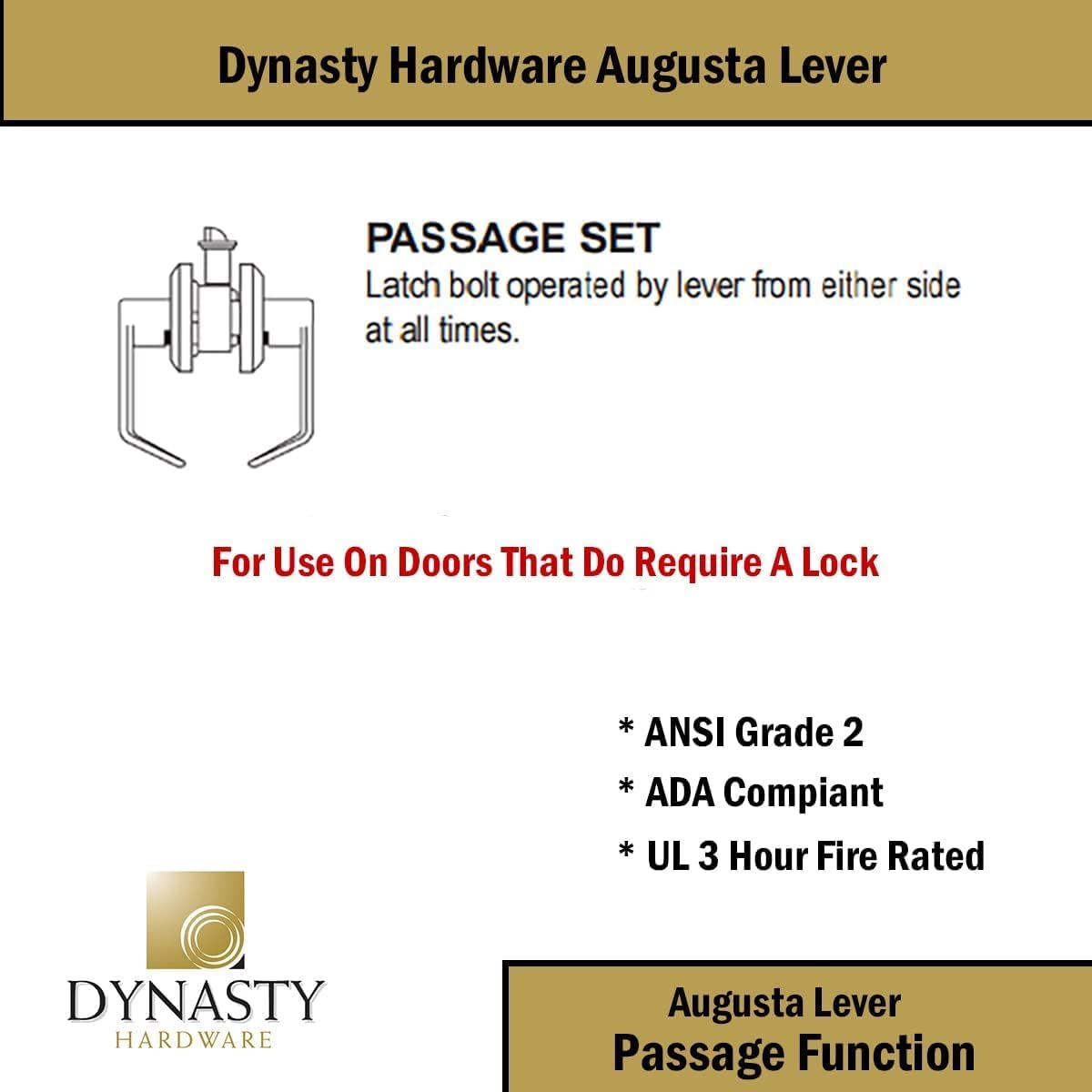

Passage Function (AUG-30-26D)

This Dynasty Hardware grade 2 passage function commercial heavy duty door lever can be used in office buildings, restaurants, hotels

ANSI Grade 2 certified cylindrical Passage function lever handle.
ADA approved for barrier free access on all commercial and residential exterior doors.
This passage lock can be used for either right or left handed applications.
The 4-3/4 Inch handles work independently of each other.
The 2-3/4-Inch backset latch meets the UL 3 Hour Fire Rating.
This lockset is made to fit doors between 1-3/8-Inch and 1-3/4-Inch.

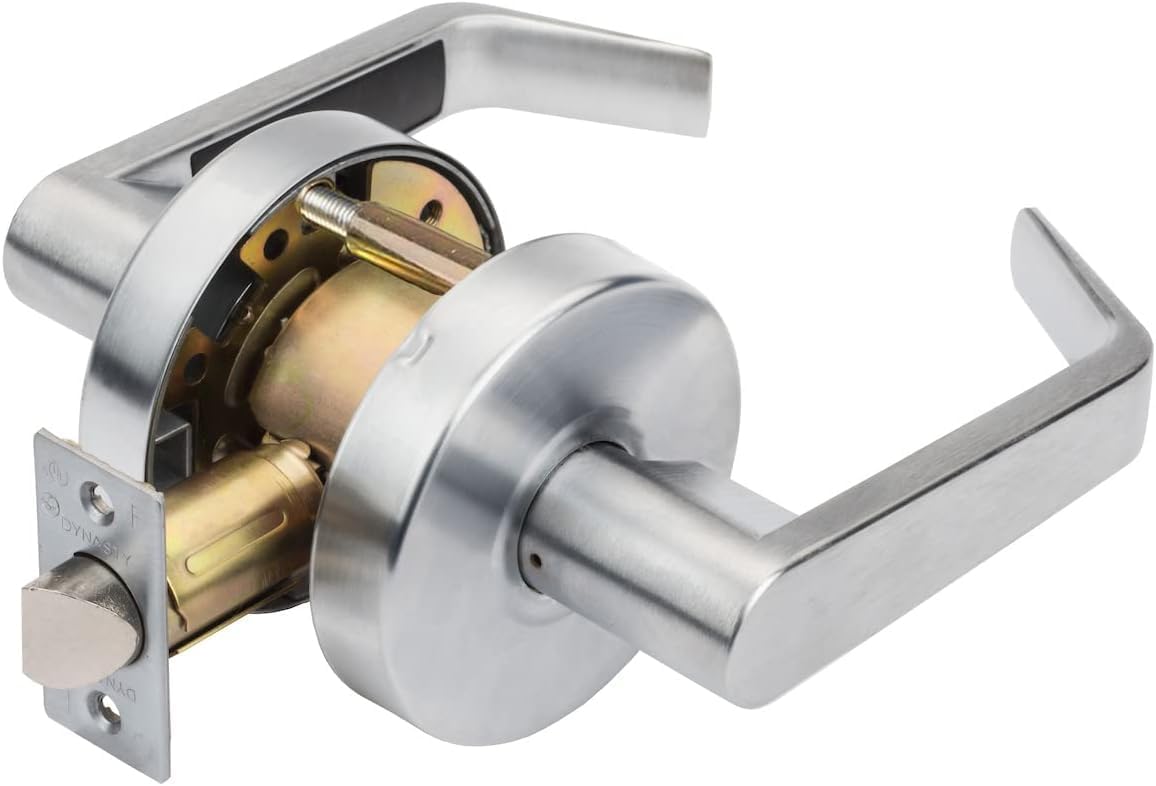

Augusta AUG-30-26D passage door lever dynasty hardware

Exterior Lever

Exterior lever always unlocked

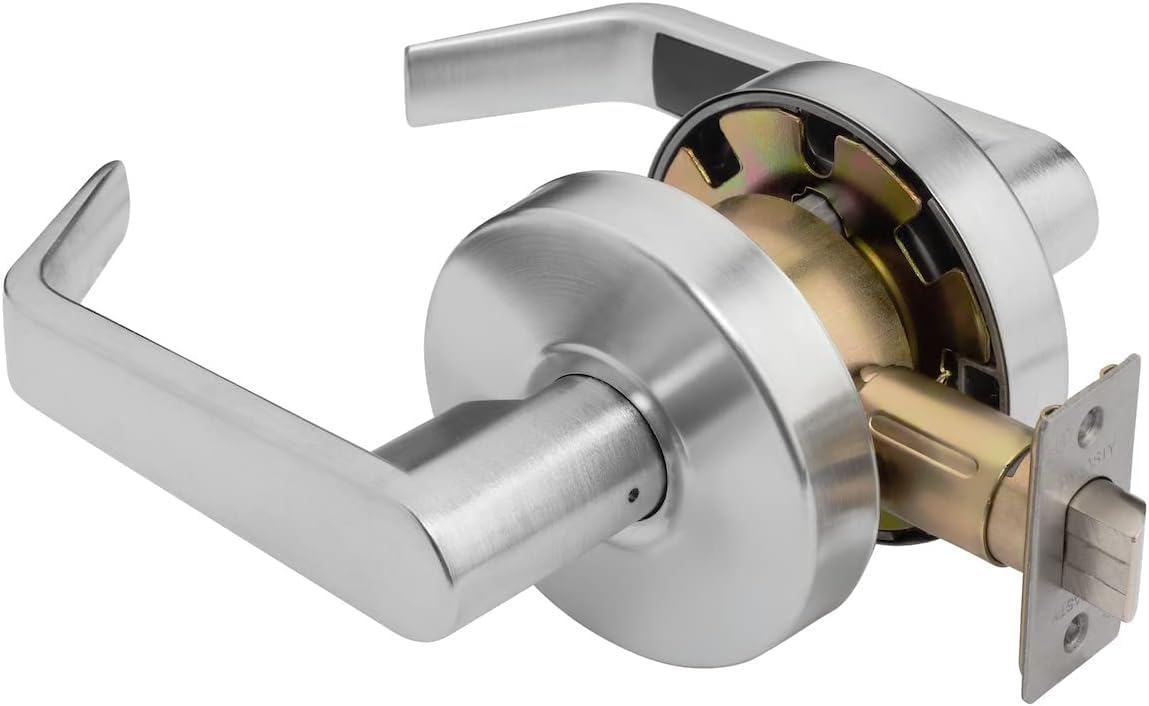

dynasty hardware passage Augusta door lever

Interior Lever

Interior lever is always free for immediate exit in case of emergency.

storeroom lock commercial heavy duty door handle satin chrome dynasty hardware

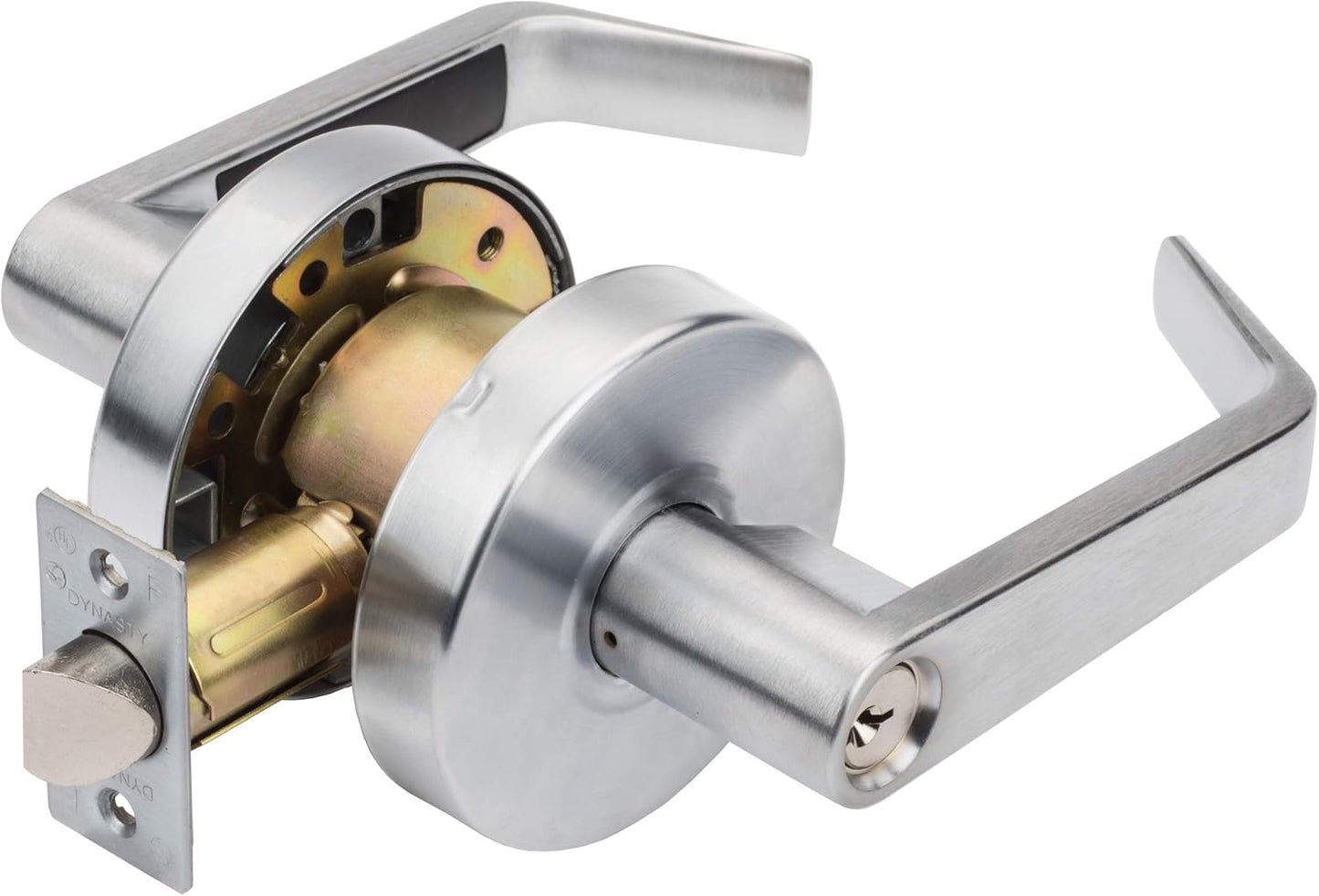

Storeroom Function (AUG-05-26D)

This Dynasty Hardware grade 2 keyed storeroom function commercial heavy duty door lever can be used in office buildings, restaurants, hotels

ANSI Grade 2 certified cylindrical Key-In function Lever handle
ADA approved for barrier free access on all commercial and residential exterior doors.
This keyed storeroom door lock can be used for either right or left handed applications.
The 4-3/4 Inch handles work independently of each other.
The 2-3/4-Inch backset latch meets the UL 3 Hour Fire Rating.
This storeroom lockset is made to fit doors between 1-3/8-Inch and 1-3/4-Inch.

storeroom lock door lever dynasty hardware commercial heavy duty

Exterior Lever

Exterior Lever is always locked. Enter door using key which is provided with the hardware.

Uses SC1 keys
Each set is sold keyed different
Locks can be easily keyed alike if needed by any local lock shop.
The exterior handle is removable for ease of re-keying.
6 pin solid brass cylinder plug

Storeroom Lock Dynasty Hardware Augusta

Interior Lever

Interior lever is always free for immediate exit in case of emergency.

classroom lock commercial dynasty hardware Augusta door handle

Classroom Function (AUG-03-26D)

This Dynasty Hardware grade 2 keyed classroom function commercial heavy duty door lever can be used in office buildings, restaurants, hotels

ANSI Grade 2 certified cylindrical Key-In function Lever handle
ADA approved for barrier free access on all commercial and residential exterior doors.
This keyed classroom door lock can be used for either right or left handed applications.
The 4-3/4 Inch handles work independently of each other.
The 2-3/4-Inch backset latch meets the UL 3 Hour Fire Rating.
This classroom lockset is made to fit doors between 1-3/8-Inch and 1-3/4-Inch.

dynasty hardware Augusta keyed classroom door lock

Exterior Lever

Exterior lever can be in the locked or unlocked position. Set the exterior lever to be either locked or unlocked using the key which is included with the hardware.
